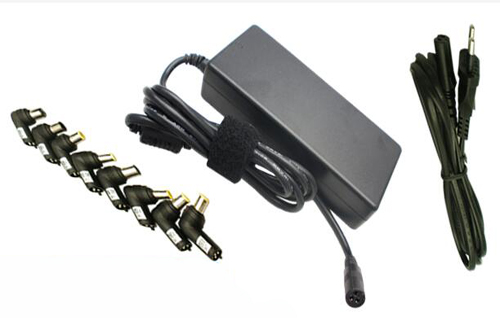

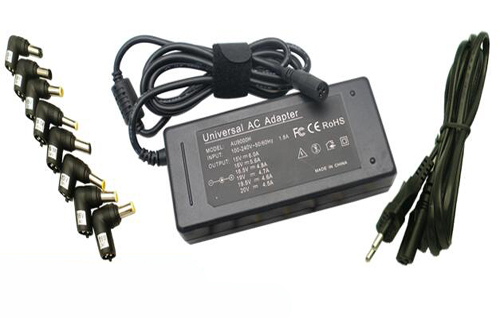

Automatic Universal Laptop Home Charger
- 1. 100% burn-in test for 4 hours before delivery like international standard.
- 2. 0.3-0.5% defective rate.
- 3. 100% replacement of the defective goods.
- 4. Flexible and fast delivery time.
| AC Input | |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output | |
| Output Voltage | DC 15V/16V/18.5V/19V/19.5V |
| Output Current | DC 6A-4.7A |
| Output Power | 90W |
| DC Connector Size | 3 pin ( with 8 standard dc tips) |
| 8 Standard DC Tips | 15V/M1 6.3*3.0 mm / 16V/M2 5.5*2.5 mm / 16V/M3 6.5*4.4 mm / 18.5V/M4 4.8*1.7 mm / 19V/M5 5.5*2.5 mm / 19V/ M6 5.0*3.0 mm / 19V/ M7 5.5*2.1 mm / 19.5V/M8 6.5*4.4 mm |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | 85% |
| Output Cable Standard | 0.75mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Advantages | |
| 1. It is with LED light and various convertible dc tips | |
| 2. The output voltage would be changed automatically when different tips on it | |
| 3. It is better and easier for end clients to use it | |
| Environment | |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C~85°C |
| Storage Humidity | 5%~95%RH |
| Protection | |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates | |
| CE, ROHS, REACH, FCC, ERP, CB, GS, TUV, UL, CUL, CCC,PSE | |
| Dimensions | |
| Adapter Size | 13.2*5.8*3.0cm |
| Adapter Weight | 350g |
| Color Box Size | 26*16*53 cm |
| Color Box Weight | 65G |
| PCS/CTN | 20PCS or 40PCS |
| Outer Carton Size | 42*27*32.5CM or 53*32.5*42CM |
| Outer Carton Weight | 600G or 800G |
| GW/CTN | 8900G or 17400G |
| Package | |
| Inner Box | Normally neutral color box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty | |
| Guarantee | 30 days |
| Warranty | 2 years |
